Static Var Generator

Instantaneous response speed
Better low voltage ride through than a capacitor bank
Capacitive and inductive reactive power compensation
Stepless adjustable, precise reactive power compensation

Static Var Generator SVG

An Static Var Generator is a power electronics-based device connected in parallel with the load that requires harmonics mitigation. SVG can compensate rapid reactive loads and achieve quite high compensation accuracy. it is the best scheme in the field of reactive power control. Compared with the traditional condenser, capacitor reactor and traditional SVC mainly represented by thyristor controlled reactor TCR, SVG has incomparable advantages.

Fast response
Avoid resonance
Removes harmonic current
Without under-compensation or over-compensation
Power factor after compensation is generally above 0.98

Contact Us

Send Email

Overview

Static Var Generator SVG is a product that improves the power factor and does not meet the standard. It is connected in parallel with the load to be compensated, acts as a controlled current source, and provides current waveforms in real time.At present, this electronic compensation method is a popular compensation solution. Its characteristic is that the IGBT topology controlled by DSP can perfectly compensate each phase of inductance and capacitance load, and it can also correct phase imbalance problems. Static Var Generator SVG is not affected by harmonics, resonance and voltage levels, reducing voltage changes, reducing flicker and balancing load on connected systems, and adapting to stringent power quality standards and grid specifications.

Strong power electric SVG is a high performance, high reliability power quality product. And suitable for active compensation for inductive and capacitive loads can solve difficult problems in the field of reactive power compensation. Compared with traditional reactive power compensation capacitor bank, SVG can achieve fast response, accurate compensation, compensation accuracy can reach 99.9% (power factor after compensation>0.99), various compensation methods (inductive reactive power compensation and capacitive reactive power compensation).

Features-benefits

Instantaneous response speed <1ms, Full response speed <10ms.
Strong ability to apply to the environment, up to 5000m altitude.
Full reactive current can also be provided when the network voltage level drops.
High stability: Infinite impedance to grid, avoids harmonic resonance problem.
Wide input voltage and frequency range, 150-1500VDC, wide range compensation 30kva-15000kva.
Compared with capacitor banks type, good performance, no AC capacitor bank, more accurate compensation.
Perfect performance, increase the running time, improve the service life of equipment, reduce maintenance costs.
Avoid power waste, reduce power fines, reduce energy loss, reduce Co2 emissions, improve environmental quality.
Over voltage, under voltage, over current, over temperature, phase loss, short circuit protection, real-time recording analysis.
Modular design, easy installation, flexible application, according to the compensation capacity to increase the SVG module, up to 12 cabinets in parallel.
Compared to reactive power compensation capacitor banks or reactor banks, svg can track load changes in real time. Compensate in real time without the risk of overcompensation.
Precise instantaneous capacitive and inductive reactive power compensation function, High speed, Precise (-0.99≤Cosφ≤0.99), Step-less, Bi-directional (capacitive and inductance) compensation.

Applications

SVG has many applications in low and high voltages. with voltages up to 38.5kv. No matter in the industrial field or in the field of infrastructure construction, has very considerable economic benefits to customers.

At present, Strong Power Electric has done application cases: electric arc furnace, ball mill, welding machine, rolling mill, mining, heavy industry, data center, wind and solar farms, renewable energy market, etc. SVG can ensure the stability of the power system and to achieve the safe and smooth operation of the equipment.

Specifications

Item	Technical Parameters
Rated voltage	400V,660v,750v,1250v
Stand-alone device capacity	50A-500A
Instantaneous response speed	<0.1ms
Full response speed	<10ms
Voltage flicker suppression ratio	5:1
Current distortion rate after compensation	THDI<4%, can filter out the 30th harmonic
Voltage distortion rate after compensation	THDV<5%
Power factor	>0.99, users can set
Correct three-phase unbalance	Unbalance degree <3%
Design service life	>20 years
Efficiency	>99%
Installation and heat dissipation method	Indoor installation and air cooling
Electromagnetic Compatibility	Meet the requirements of EU standard EN50121-5:2000
Grid frequency	50/60 Hz
Noise level	<75dB
Ambient temperature	-10℃~40℃
Protection level	IP31 (please contact manufacturer for higher protection level)
Humidity	<90% (All circuit boards are coated with three anti-paints)

Downloads

How Does SVG Work Principle?

The principle of SVG is very similar to that of active power filters, The SVG system, in parallel with the load, identifies inconsistencies in the current waveform and injects a controlled lagging or leading current in real time depending on the nature of the current inconsistency (capacitive or inductive). The effect of this real-time current injection is to align the phase angle waveforms of the current and voltage and help to achieve unity power factor in the electrical system. SVG can absorb or generate reactive power based on load reactive power or grid voltage levels by adjusting output voltage amplitude and phase Angle or directly controlling ac current.

Static Var Generator Installation Method

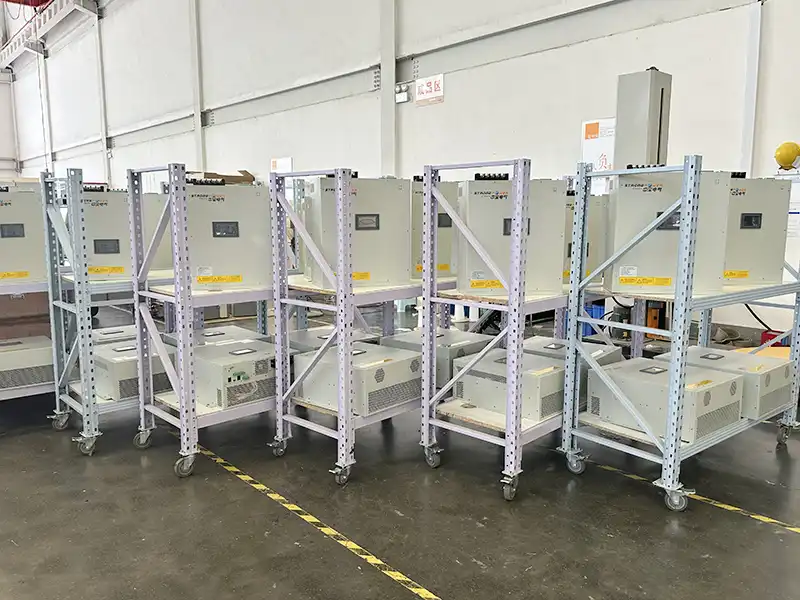

SVG are a modular design that are available in wall-mount, rack-mount and rack/cabinet configurations.
This flexibility gives engineers multiple options to cater for all situations and ultimately save valuable space and floor real-estate.

RACK MOUNTED MODULE

Rack Mounted Static VAR Generators are designed for light industrial, commercial buildings and demanding applications with voltage level up to 690V in both 3W and 4W applications.
Ultra-compact design makes it suitable for space limited application, retrofit projects and allows easy integration into variable speed drives (VFDs) or capacitor bank cubicles.

Rack mounted modules are available in single module capacity from 30KVAR – 250KVAR, with unlimited parallel installation capability.

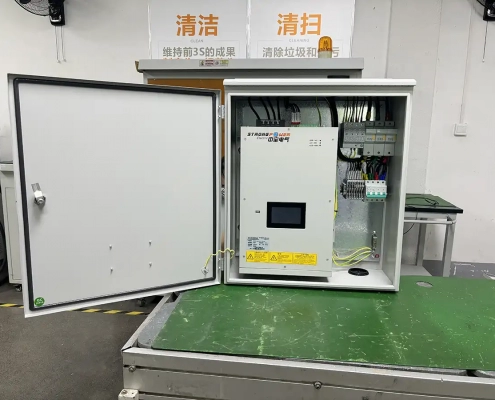

WALL MOUNTED MODULE

Wall mounted SVG are a complete space effective solution for dynamic step less PFC in three-phase industrial, commercial or service installations.

Wall mounted modules are available in single module capacity from 30KVAR – 250KVAR, with unlimited parallel installation capability.

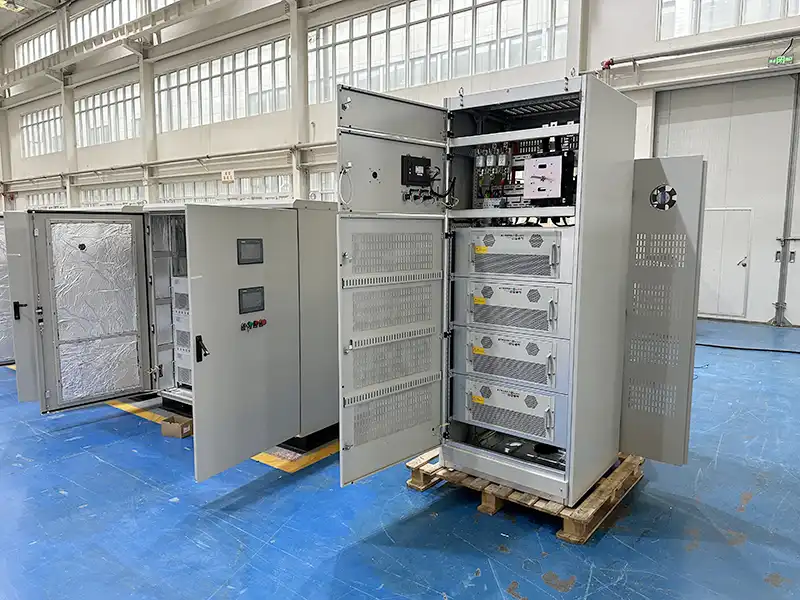

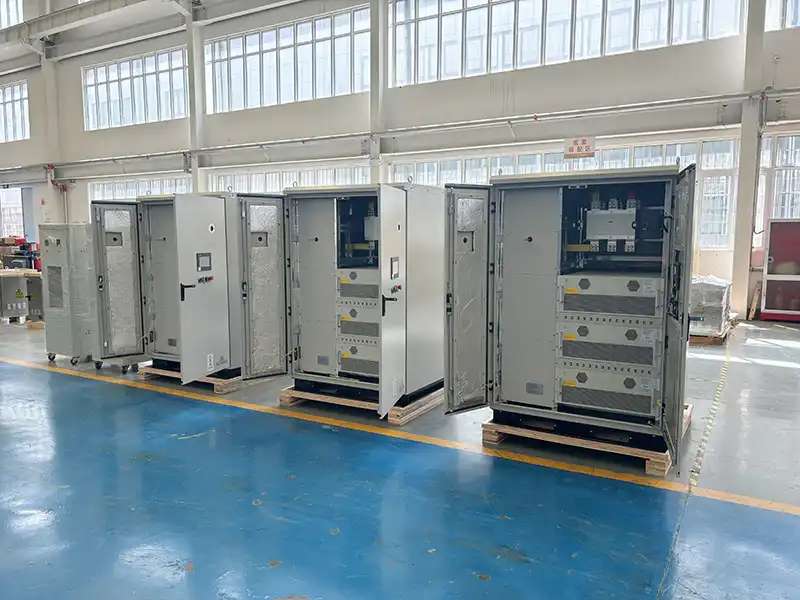

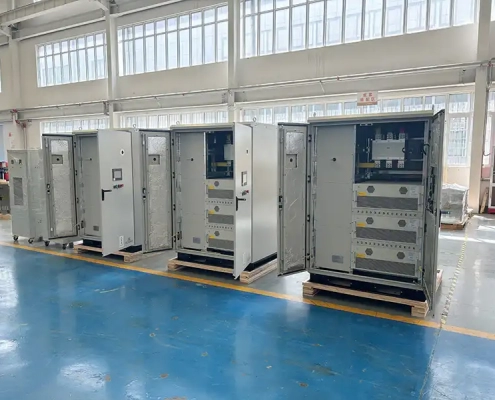

FLEXIBLE CABINET SOLUTIONS

EMES offers a wide range of flexible and modular cabinet options. Cabinets are avilable in IP20, IP31, IP54 or others degrees of protection upon request. Cabinets are easelly expandable with small-sized rack modules and up to 900A maximum capacity in one cabinet.

The cabinets are pre-installed, pre-wired, pre-configured and tested for quality before shipment.

The flexible functionality of the cabinets allows integration to overlying control such as a PLC or SCADA systems.

Leave us a message to get quotation and sample!

If you are attracted to our products, please send us a message and we will contact you as soon as we receive it. Email: [email protected] Whatsapp:+8613653737638

Static Var Generator

Static Var Generator SVG

How Does SVG Work Principle?

Static Var Generator Installation Method

RACK MOUNTED MODULE

WALL MOUNTED MODULE

FLEXIBLE CABINET SOLUTIONS
