Recloser

Voltage level up to 38kv
reduce damage from power losses
increase reliability of power supply
Compliant with ANSI/IEEE standards

Automatic Circuit Recloser

Automatic Circuit Recloser (ACR) is an intellectual protective device capable of interrupting fault current and which purpose is to increase distribution system reliability. Their function is to automatically disconnect a section of feeder in the event of fault, such as a short circuit. After a certain period of time, the recloser makes a specified number of attempts to re-energize the line to restore power supply to consumers.

Auto-reclosing
Fault current detection
Automatic disconnection of damaged line sections
Automatic restore of power supply from the network of alternative power source
Remote control, local and remote network reconfiguration
Self-diagnostics
Measurement of network mode parameters
Keeping the logs of operational and emergency events in the line

Contact Us

Send Email

Overview

Recloser is an automatic high-voltage switchgear, which can be divided into three-phase recloser and single-phase recloser. Used in overhead power distribution networks to detect and interrupt transient faults. When the circuit fails (such as a short circuit), the power is cut off to protect the circuit from damage and ensure the stability of the power grid system. At the same time, the operation status of the recloser can also be controlled and monitored through the mobile phone and SCADA system.

Automatic Circuit Recloser adopts the most advanced solid insulation technology in the world, and deeply integrates the voltage sensor, current sensor, zero sequence current sensor, vacuum interrupter, etc. with the main circuit inside the insulation pole, which is a fusion of integrated solid insulation vacuum circuit recloser.

Recloser can be used with intelligent terminals to meet the requirements of reclosers, automatic sectioning devices, contact switches and user boundary switches on distribution network lines. At the same time, it can also be connected to the central master station through GPRS, optical fiber, Ethernet and other communication methods to form a distribution network feeder automation.

Features-benefits

Maximum installation altitude 3000m above sea level
High-performance protection and control functions, easy to configure and use
Easy integration of multiple controller options for modern grid applications
Small and lightweight; easy to install in outdoor utility poles or substations
High performance protection and control features with great ease of configuration and use.
Remote operation, simple, fast and safe maintenance, reduce labor operation and maintenance costs.
Hydrophobic, anti-hygroscopic, with optimum insulating properties. prevents continuous sheets of water from forming leakage current paths that deteriorate the creepage withstand level.

Applications

Specifications

Item	Unit	Value
Rated Maximum Voltage	kV	15.5-38
Rated frequency	Hz	50-60
Rated Continuous Current	A	800
Fault Make Capacity (RMS)	kA	12.5/16
Fault Make Capacity Peak	kA	31.5/40
Fault Break Capacity	kA	12.5/16
Fault Break Capacity Operations		70-140
Short Time Current Withstand	secs	16kA/3
Mainly Active Breaking Capacity	A	800
Cable Charging Current	A	25/40
Impulse Withstand Phase to Earth & Phase to Phase	kV	110-200
Impulse Across the Interrupter	kV	110-170
Power Frequency Across the Interrupter	kV	50-70
Ambient Temperature	°C	-40°C to +55°C
Ambient Temperature	°C	-40°C to +55°C
Humidity		0-100%
Altitude	m	3000
Weight	kg	100-150

Downloads

Working fundamentals of reclosers

When the line is short-circuited, the recloser will automatically cut off the power supply, after a period of time (return to the original state) and automatically closes. If the line fault is not cleared, the recloser will continue to open the line, and after a period of time, it will automatically close. If the fault is permanent, after 3 repetitions, the recloser will be locked out. Electricity personnel are then required to perform on-site troubleshooting to repair the line to supply power.

Types of Automatic Circuit Recloser

According to the number of phase, it can be divided into: three-phase recloser and single-phase recloser

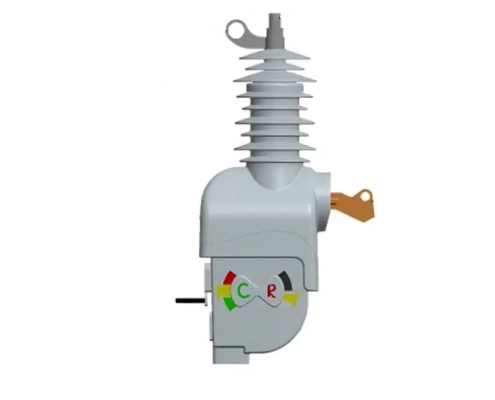

Single-phase reclosers are used to protect single-phase lines such as branches or taps of a three-phase feeder. When one of the lines fails, the other two phases can work normally.

Three-phase reclosers are used on three-phase circuits to improve system reliability.

According to the driving method, it can be divided into: the spring operation mechanism type and the permanent magnet mechanism type

And can choose to work with the recloser controller(FTU) to achieve the function of remote control. The recloser controller has the ability to sense overcurrent, select timed operation, time trip and recloser functions, and eventually lock out. At the same time, it can be controlled and monitored through mobile phone and SCADA system. View event records (such as power (A, W, VAR), voltage (V) or frequency (f) values.) from your mobile phone to easily troubleshoot line faults.

It can save a lot of time and cost for power companies, reduce the number of on-site operations of operation and maintenance personnel, quickly restore power supply, and avoid changes caused by frequent power outages.
